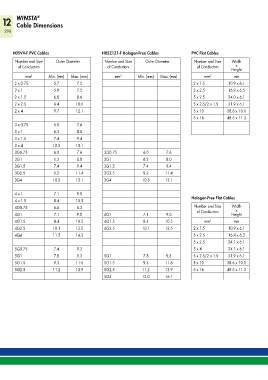

12 WINSTA ®
Cable Dimensions
298

H05VV-F PVC Cables H05Z1Z1-F Halogen-Free Cables PVC Flat Cables
Number and Size Outer Diameter Number and Size Outer Diameter Number and Size Width
of Conductors of Conductors of Conductors x
Height
mm 2 Min. (mm) Max. (mm) mm 2 Min. (mm) Max. (mm) mm 2 mm
2 x 0.75 5.7 7.2 2 x 1.5 10.9 x 6.1
2 x 1 5.9 7.5 3 x 2.5 16.9 x 6.5
2 x 1.5 6.8 8.6 5 x 2.5 24.0 x 6.1
2 x 2.5 8.4 10.6 5 x 2.5/2 x 1.5 31.9 x 6.1
2 x 4 9.7 12.1 5 x 10 38.6 x 10.1
5 x 16 48.5 x 11.3
3 x 0.75 6.0 7.6
3 x 1 6.3 8.0
3 x 1.5 7.4 9.4
3 x 4 10.5 13.1
3G0.75 6.0 7.6 3G0.75 6.0 7.6
3G1 6.3 8.0 3G1 6.3 8.0
3G1.5 7.4 9.4 3G1.5 7.4 9.4
3G2.5 9.2 11.4 3G2.5 9.2 11.4
3G4 10.5 13.1 3G4 10.5 13.1

4 x 1 7.1 9.0
4 x 1.5 8.4 10.5 Halogen-Free Flat Cables
4G0.75 6.6 8.3 Number and Size Width
x
4G1 7.1 9.0 4G1 7.1 9.0 of Conductors Height
4G1.5 8.4 10.5 4G1.5 8.4 10.5 mm 2 mm
4G2.5 10.1 12.5 4G2.5 10.1 12.5 2 x 1.5 10.9 x 6.1
4G4 11.5 14.3 3 x 2.5 16.4 x 6.3
5 x 2.5 24.1 x 6.1
5G0.75 7.4 9.3 5 x 4 24.1 x 6.1
5G1 7.8 9.3 5G1 7.8 9.3 5 x 2.5/2 x 1.5 31.9 x 6.1
5G1.5 9.3 11.6 5G1.5 9.3 11.6 5 x 10 38.6 x 10.1
5G2.5 11.2 13.9 5G2.5 11.2 13.9 5 x 16 48.5 x 11.3
5G4 13.0 16.1
