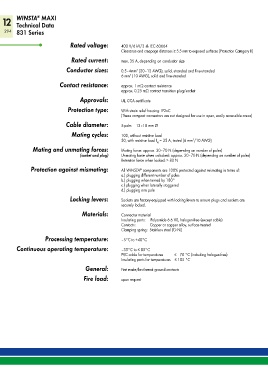

12 WINSTA MAXI
Technical Data
294 831 Series

Rated voltage: 400 V/6 kV/3 â IEC 60664
Clearance and creepage distances ≥ 5.5 mm to exposed surfaces (Protection Category II)
Rated current: max. 35 A, depending on conductor size

Conductor sizes: 0.5–4mm (20–12 AWG), solid, stranded and fine-stranded
2
6 mm (10 AWG), solid and fine-stranded
2
Contact resistance: approx. 1 mΩ contact resistance
approx. 0.25 mΩ contact transition plug/socket
Approvals: UL, CCA certificate

Protection type: With strain relief housing: IP2xC
(These compact connectors are not designed for use in open, easily accessible areas)
Cable diameter: 5-pole: 13–18 mm Ø

Mating cycles: 100, without resistive load
50, with resistive load I = 35 A, tested (6 mm /10 AWG)
2
N
Mating and unmating forces: Mating force: approx. 30–70 N (depending on number of poles)
(socket and plug) Unmating force when unlocked: approx. 30–70 N (depending on number of poles)
Retention force when locked: > 80 N
Protection against mismating: All WINSTA components are 100% protected against mismating in terms of:
®
a.) plugging different number of poles
b.) plugging when turned by 180°
c.) plugging when laterally staggered
d.) plugging one pole
Locking levers: Sockets are factory-equipped with locking levers to ensure plugs and sockets are
securely locked.
Materials: Connector material
Insulating parts: Polyamide 6.6 V0, halogen-free (except cable)
Contacts: Copper or copper alloy, surface-treated
Clamping spring: Stainless steel (Cr-Ni)
Processing temperature: –5°C to +40°C

Continuous operating temperature: –35°C to ≤ 85°C
PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
General: First make/last break ground contacts

Fire load: upon request
