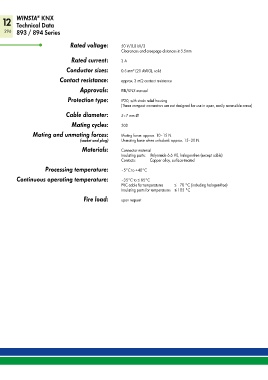

12 WINSTA KNX
Technical Data
296 893 / 894 Series

Rated voltage: 50 V/0.8 kV/3
Clearances and creepage distances ≥ 5.5mm
Rated current: 3 A

Conductor sizes: 0.5 mm (20 AWG), solid
2
Contact resistance: approx. 3 mΩ contact resistance

Approvals: EIB/KNX manual
Protection type: IP20, with strain relief housing
(These compact connectors are not designed for use in open, easily accessible areas)
Cable diameter: 5–7 mm Ø

Mating cycles: 200

Mating and unmating forces: Mating force: approx. 10–15 N
(socket and plug) Unmating force when unlocked: approx. 15–20 N
Materials: Connector material
Insulating parts: Polyamide 6.6 V0, halogen-free (except cable)
Contacts: Copper alloy, surface-treated
Processing temperature: –5°C to +40°C
Continuous operating temperature: –35°C to ≤ 85°C
PVC cable for temperatures ≤ 70 °C (including halogen-free)
Insulating parts for temperatures ≤ 105 °C
Fire load: upon request
