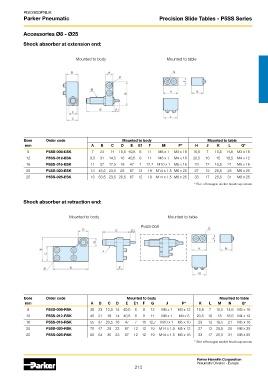

Page 213 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Precision Slide Tables - P5SS Series

Accessories Ø8 - Ø25

Shock absorber at extension end:

Mounted to body Mounted to table

Bore Order code Mounted to body Mounted to table
mm A B C D E E1 F M P* H J K L Q*
8 P5SS-008-ESK 7 23 14 15,5 40,6 6 11 M8 x 1 M3 x 16 16,6 7 15,5 14,6 M3 x 16
12 P5SS-012-ESK 9,5 31 14,5 16 40,6 6 11 M8 x 1 M4 x 16 20,5 10 15 18,5 M4 x 12
16 P5SS-016-ESK 11 37 17,5 19 47 7 12,7 M10 x 1 M5 x 16 23 12 18,5 21 M5 x 16
20 P5SS-020-ESK 13 45,5 23,5 26 67 12 19 M14 x 1.5 M6 x 25 27 13 25,5 25 M6 x 25
25 P5SS-025-ESK 16 53,5 23,5 26,5 67 12 19 M14 x 1.5 M8 x 25 33 17 25,5 31 M8 x 25
* Size of hexagon socket head cap screws

Shock absorber at retraction end:

Mounted to body Mounted to table

P5SS-008

Bore Order code Mounted to body Mounted to table
mm A B C D E E1 F G J P* K L M N Q*
8 P5SS-008-RSK 38 23 12,5 14 40,6 6 8 12 M8 x 1 M3 x 12 16,6 7 15,5 14,6 M3 x 16
12 P5SS-012-RSK 45 31 18 14 40,6 6 8 11 M8 x 1 M4 x 8 20,5 10 15 18,5 M4 x 12
16 P5SS-016-RSK 55 37 23,5 16 47 7 10 12,7 M10 x 1 M5 x 10 23 12 18,5 21 M5 x 16
20 P5SS-020-RSK 70 47 29 23 67 12 12 19 M14 x 1.5 M5 x 12 27 13 25,5 25 M6 x 25
25 P5SS-025-RSK 80 54 35 23 67 12 12 19 M14 x 1.5 M6 x 16 33 17 25,5 31 M8 x 25
* Size of hexagon socket head cap screws

Parker Hannifin Corporation
Pneumatic Division - Europe
213
