P. 218
PDE2600PNUK
Parker Pneumatic Pneumatic Stop Cylinders - STV/STVR

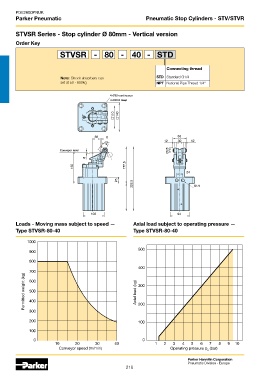

STVSR Series - Stop cylinder Ø 80mm - Vertical version
Order Key
STVSR - 80 - 40 - STD
Connecting thread
Note: Shock absorbers can STD Standard G1/4
set at 50 - 800kg NPT National Pipe Thread 1/4”
4-Ø13 continuous
4-Ø20 6 deep
Conveyor level
G1/4
Loads - Moving mass subject to speed — Axial load subject to operating pressure —
Type STVSR-80-40 Type STVSR-80-40
1000
500
900
800
400
700
Permitted weight (kg) 500 Axial load (kg) 300
600
400
300 200
200 100
100
0 0
10 20 30 40 1 2 3 4 5 6 7 8 9 10
Conveyor speed (m/min) Operating pressure p (bar)
n
Parker Hannifin Corporation
Pneumatic Division - Europe
218
