P. 221
PDE2600PNUK

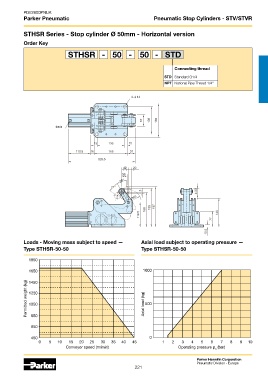

Parker Pneumatic Pneumatic Stop Cylinders - STV/STVR
STHSR Series - Stop cylinder Ø 50mm - Horizontal version
Order Key
STHSR - 50 - 50 - STD
Connecting thread
STD Standard G1/4
NPT National Pipe Thread 1/4”
G1/4
Loads - Moving mass subject to speed — Axial load subject to operating pressure —
Type STHSR-50-50 Type STHSR-50-50
1850
1650 1000
Permitted weight (kg) 1250 Axial load (kg) 500
1450
1050
850
650
450 0
0 5 10 15 20 25 30 35 40 45 1 2 3 4 5 6 7 8 9 10
Conveyor speed (m/min) Operating pressure p (bar)
n
Parker Hannifin Corporation
Pneumatic Division - Europe
221
