P. 217
PDE2600PNUK
Parker Pneumatic Pneumatic Stop Cylinders - STV/STVR

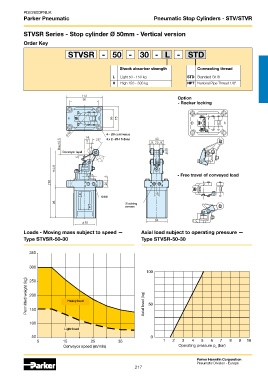

STVSR Series - Stop cylinder Ø 50mm - Vertical version
Order Key
STVSR - 50 - 30 - L - STD
Shock absorber strength Connecting thread
L Light 50 - 150 kg STD Standard G1/8
H High 150 - 300 kg NPT National Pipe Thread 1/8”
Option
- Rocker locking
4 – Ø9 continuous
4 x 2 –Ø14 5 deep
Conveyor level
- Free travel of conveyed load
G1/8
2 locking
screws
Loads - Moving mass subject to speed — Axial load subject to operating pressure —
Type STVSR-50-30 Type STVSR-50-30
350
300
100
Permitted weight (kg) 200 Heavy load Axial load (kg) 50
250
150
100
Light load
50 0
5 15 25 35 1 2 3 4 5 6 7 8 9 10
Conveyor speed (m/min) Operating pressure p (bar)
n
Parker Hannifin Corporation
Pneumatic Division - Europe
217
