P. 219
PDE2600PNUK

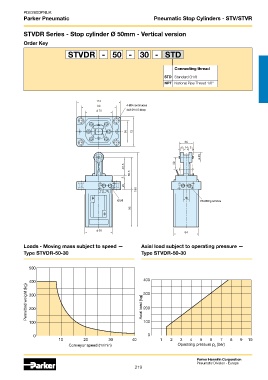

Parker Pneumatic Pneumatic Stop Cylinders - STV/STVR
STVDR Series - Stop cylinder Ø 50mm - Vertical version
Order Key
STVDR - 50 - 30 - STD
Connecting thread
STD Standard G1/8
NPT National Pipe Thread 1/8”
4-Ø9 continuous
4x2 Ø14 5 deep
G1/8 2 locking screws
Loads - Moving mass subject to speed — Axial load subject to operating pressure —
Type STVDR-50-30 Type STVDR-50-30
500 400
Permitted weight (kg) 400 Axial load (kg) 300
300
200
200
100 100
0 0
10 20 30 40 1 2 3 4 5 6 7 8 9 10
Conveyor speed (m/min) Operating pressure p (bar)
n
Parker Hannifin Corporation
Pneumatic Division - Europe
219
