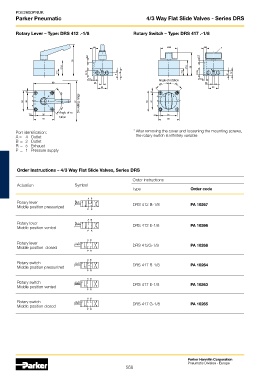

Page 568 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic 4/3 Way Flat Slide Valves - Series DRS

Rotary Lever – Type: DRS 412 .-1/8 Rotary Switch – Type: DRS 417 .-1/8

Angle of rotation

Swivelling range

Angle of ro-
tation

Port identification: * After removing the cover and loosening the mounting screws,
A = 4 Outlet the rotary switch is infinitely variable.
B = 2 Outlet
R = 5 Exhaust
P = 1 Pressure supply

Order Instructions – 4/3 Way Flat Slide Valves, Series DRS

Order Instructions
Actuation Symbol
Type Order code

A B
Rotary lever a b DRS 412 B-1/8 PA 10267
Middle position pressurized
PR
A B
Rotary lever a b DRS 412 E-1/8 PA 10266
Middle position vented
PR
A B
Rotary lever a b DRS 412G-1/8 PA 10268
Middle position closed
PR

A B
Rotary switch a b DRS 417 B-1/8 PA 10264
Middle position pressurized
PR
A B
Rotary switch a b DRS 417 E-1/8 PA 10263
Middle position vented
PR
A B
Rotary switch a b DRS 417 G-1/8 PA 10265
Middle position closed
PR

Parker Hannifin Corporation
Pneumatic Division - Europe
568
