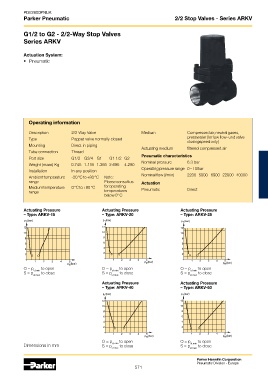

P. 571
PDE2600PNUK
Parker Pneumatic 2/2 Stop Valves - Series ARKV
G1/2 to G2 - 2/2-Way Stop Valves
Series ARKV
Actuation System:
• Pneumatic
Operating information
Description 2/2 Way Valve Medium Compressed air, neutral gases,
Type Poppet valve normally closed presswater (for low flow- und valve
closingspeed only )
Mounting Direct in piping
Actuating medium filtered compressed air
Tube connection Thread
Pneumatic characteristics
Port size G1/2 G3/4 G1 G1 1/2 G2
Weight (mass) Kg 0.745 1.115 1.365 2.695 4.290 Nominal pressure 6.3 bar
Installation In any position Operating pressure range 0 – 10 bar
Ambient temperature -20 °C to +80 °C Note: Nominal flow (l/min) 2200 5000 6900 22000 40000
range Please consult us Actuation
Medium temperature 0 °C to +80 °C for operating Pneumatic Direct
range temperatures
below 0° C
Actuating Pressure Actuating Pressure Actuating Pressure
– Type: ARKV-15 – Type: ARKV-20 – Type: ARKV-25
O = p st min to open O = p st min to open O = p st min to open
S = p to close S = p to close S = p to close
st max st max st max
Actuating Pressure Actuating Pressure
– Type: ARKV-40 – Type: ARKV-50
O = p st min to open O = p to open
Dimensions in mm S = p to close S = p st min to close
st max st max
Parker Hannifin Corporation
Pneumatic Division - Europe
571
