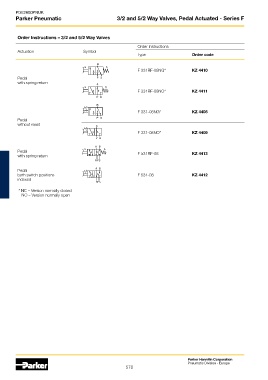

Parker Pneumatic 3/2 and 5/2 Way Valves, Pedal Actuated - Series F

Order Instructions – 3/2 and 5/2 Way Valves
Order Instructions
Actuation Symbol
Type Order code
B
a b
ab F 331RF-08NG* KZ 4410
Pedal PS
with spring return A
a b
a b F 331RF-08NO* KZ 4411
PR

B
a,b
ab F 331-08NG* KZ 4408
Pedal PS
without reset A
a,b
a b F 331-08NO* KZ 4409
PR
A B
a b
Pedal a b F 531RF-08 KZ 4413
with spring return
R S
P
Pedal a,b A B
both switch positions a b F 531-08 KZ 4412
indexed
P
R S
* NC – Version normally closed
NO – Version normally open
