P. 575
PDE2600PNUK

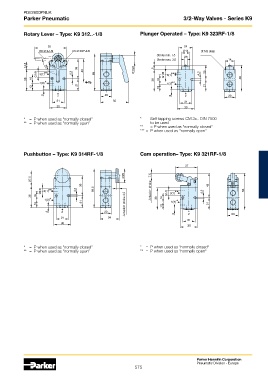

Parker Pneumatic 3/2-Way Valves - Series K9
Rotary Lever – Type: K9 312..-1/8 Plunger Operated – Type: K9 323RF-1/8
2.7x8 deep
Stroke min. 1.5
Stroke max. 3,0
* = P when used as “normally closed“ * Self tapping screws CM 3x.. DIN 7500
** = P when used as “normally open“ to be used
** = P when used as “normally closed“
*** = P when used as “normally open“
Pushbutton – Type: K9 314RF-1/8 Cam operation– Type: K9 321RF-1/8
Actuation stroke
Actuation stroke 4,2
* = P when used as “normally closed“ * = P when used as “normally closed“
** = P when used as “normally open“ ** = P when used as “normally open“
Parker Hannifin Corporation
Pneumatic Division - Europe
575
