Parker Pneumatic P3S - Air Preparation System

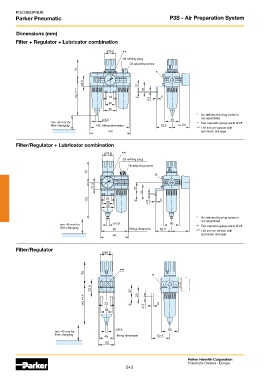

Dimensions (mm)

Filter + Regulator + Lubricator combination

Oil refilling plug
*** Oil adjusting screw

***

ca. 60

* On delivery the plug screw is
not assembled
min. 45 mm for ** Two opposite gauge ports G1/8
filter changing fitting dimension ca. 60
*** 148 mm on version with
automatic drainage

Filter/Regulator + Lubricator combination

Oil refilling plug
Oil adjusting screw

* On delivery the plug screw is
not assembled
min. 45 mm for ** Two opposite gauge ports G1/8
filter changing fitting dimension
*** 148 mm on version with
automatic drainage

Filter/Regulator

***

min. 45 mm for
filter changing fitting dimension
