PDE2600PNUK
Parker Pneumatic P3S - Air Preparation System

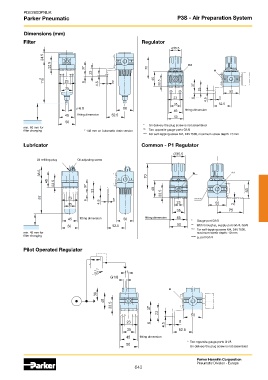

Dimensions (mm)

Filter Regulator

* *

fitting dimension
fitting dimension

* On delivery the plug screw is not assembled
min. 60 mm for
filter changing * 148 mm on Automatic drain version ** Two opposite gauge ports G1/8
*** For self-tapping screw M4, DIN 7500, maximum screw depth: 10 mm
Lubricator Common - P1 Regulator

Oil refilling plug Oil adjusting screw

**

****

fitting dimension fitting dimension
* Gauge port G1/8
** With through p supply port G1/4, G3/8
1
*** For self-tapping screw M4, DIN 7500,
min. 45 mm for maximum screw depth: 10 mm
filter changing
**** p 2 port G1/4
Pilot Operated Regulator

fitting dimension
* Two opposite gauge ports G1/8
On delivery the plug screw is not assembled

Parker Hannifin Corporation
Pneumatic Division - Europe
643
