PDE2600PNUK

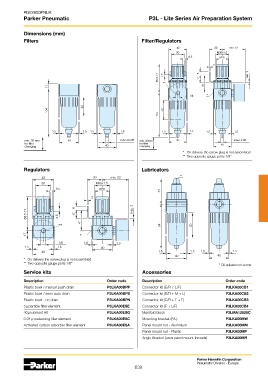

Parker Pneumatic P3L - Lite Series Air Preparation System

Dimensions (mm)
Filters Filter/Regulators

42 30 min. 52
30 M30x1.5
6.5 Ø26

2
68.5-71 4.5 8 17 max. 3
**
11 41
1/8 *

40
104 40
104

1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
min. 30 mm 40 Tube Di Ø6 min. 30mm 40 Tube Di Ø6
for filter for filter 40
changing 40 changing
* On delivery the screw plug is not assembled
** Two opposite gauge ports 1/8”

Regulators Lubricators

42 30 min. 52 *
30 M30x1.5
6.5 Ø26
51
2

8 max. 3
68.5-71 4.5 17

41
** 94 50
17 *

1/8 1.5 1.5
1.5 1.5 40
40 1.5 1.5 1.5 1.5
40 40
* On delivery the screw plug is not assembled
** Two opposite gauge ports 1/8” * Oil adjustment screw
Service kits Accessories

Description Order code Description Order code
Plastic bowl / manual push drain P3LKA00BPP Connector kit (E/R + L/F) P3LKA00CB1
Plastic bowl / semi-auto drain P3LKA00BPS Connector kit (E/R + M + L) P3LKA00CB2
Plastic bowl - no drain P3LKA00BPN Connector kit (E/R + F + F) P3LKA00CB3
5µ particle filter element P3LKA00ESE Connector kit (F + L/F) P3LKA00CB4
40µ Element Kit P3LKA00ESG Manifold block P3LMA12020C
0.01µ coalescing filter element P3LKA00ESC Mounting bracket (F/L) P3LKA00MW
Activated carbon adsorber filter element P3LKA00ESA Panel mount nut - Aluminium P3LKA00MM
Panel mount nut - Plastic P3LKA00MP
Angle Bracket (uses panel mount threads) P3LKA00MR

Parker Hannifin Corporation
Pneumatic Division - Europe
639
