P. 634
PDE2600PNUK
Parker Pneumatic Parker Global Air Preparation System

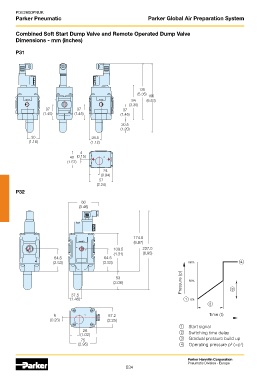

Combined Soft Start Dump Valve and Remote Operated Dump Valve
Dimensions - mm (inches)
P31
136
(5.35)
166
84 (6.53)
(3.30)
37 37 37
(1.45) (1.45) (1.45)
30.5
(1.20)
30 28.5
(1.18) (1.12)
4
40 (0.15)
(1.57)
24
(0.94)
57
(2.24)
P32
88
(3.46)
174.5
(6.87)
109.5 227.5
(4.31) (8.95)
64.5 64.5
(2.53) (2.53)
53
(2.08)
37.5
(1.48)
6 57.2
(0.23) (2.25)
1 Start signal
26 Switching time delay
(1.02) 2
75 3 Gradual pressure build up
(2.95) 4 Operating pressure p (=p )
2
1
Parker Hannifin Corporation
Pneumatic Division - Europe
634
