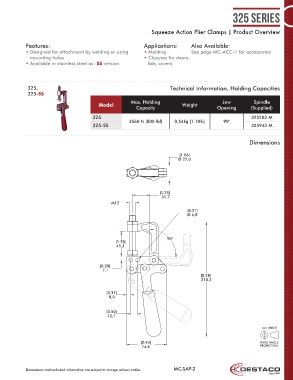

P. 2
325 Series
Squeeze Action Plier Clamps | Product Overview
Features: Applications: Also Available:
• Designed for attachment by welding or using • Molding See page MC-ACC-1 for accessories
mounting holes • Closures for doors,
• Available in stainless steel as -SS version lids, covers
325, Technical Information, Holding Capacities
325-SS
Max. Holding Jaw Spindle
Model Weight
Capacity Opening (Supplied)
325 325203-M
3560 N [800 lbf] 0,54kg [1.18lb] 90°
325-SS 325943-M
Dimensions
[1.06]
Ø 27,0
[1.25]
31,7
M12
[0.27]
Ø 6,8
90°
[1.78]
45,3
[0.28]
7,1
[8.28]
210,2
[0.31]
8,0
[0.50]
12,7
mm [INCH] mm [INCH]
[2.94] THIRD ANGLE FIRST ANGLE
74,6 PROJECTION PROJECTION
Dimensions and technical information are subject to change without notice MC-SAP-2
