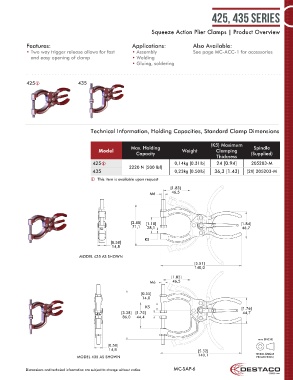

Page 6 - Destaco - Squeeze Action Plier Clamps

425, 435 Series

Squeeze Action Plier Clamps | Product Overview

Features: Applications: Also Available:
• Two way trigger release allows for fast • Assembly See page MC-ACC-1 for accessories
and easy opening of clamp • Welding
• Gluing, soldering

425 435

425

Technical Information, Holding Capacities, Standard Clamp Dimensions

(K5) Maximum
Max. Holding Spindle
Model Weight Clamping
Capacity (Supplied)
Thickness
425 0,14kg [0.31lb] 24 [0.94] 205203-M
2220 N [500 lbf]
435 0,23kg [0.50lb] 36,3 [1.43] (2X) 205203-M
 This item is available upon request
[1.83]
M6 435 46,5

[2.80] [1.10] [1.84]
71,1 28,1 46,7

K5
[0.58]
14,8
MODEL 425 AS SHOWN
[5.51]
140,0

[1.83]
M6 46,5

[0.55]
14,0
K5 [1.76]
[3.38] [1.75] 44,7
86,0 44,4

mm [INCH] mm [INCH]
[0.58]
14,8 [5.52]
MODEL 435 AS SHOWN 140,1 THIRD ANGLE FIRST ANGLE
PROJECTION
PROJECTION
Dimensions and technical information are subject to change without notice MC-SAP-6
