telemanipulators
Remote Handling | Telemanipulator Specification Guide

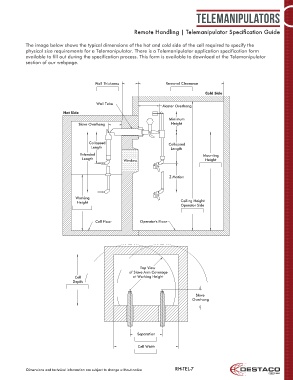

The image below shows the typical dimensions of the hot and cold side of the cell required to specify the
physical size requirements for a Telemanipulator. There is a Telemanipulator application specification form
available to fill out during the specification process. This form is available to download at the Telemanipulator
section of our webpage.
Wall Thickness Removal Clearance
Cold Side
Wall Tube
Master Overhang
Hot Side
Minimum
Slave Overhang Height
Collapsed Collapsed
Length Length
Extended Mounting
Length Window Height
Z Motion
Working
Height Ceiling Height
Operator Side
Cell Floor Operator's Floor
Top View
of Slave Arm Coverage
Cell at Working Height
Depth
Slave
Overhang
Separation
Cell Width
Dimensions and technical information are subject to change without notice RH-TEL-7
