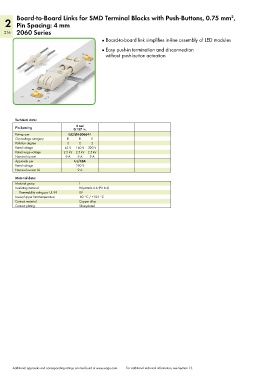

Page 218 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Board-to-Board Links for SMD Terminal Blocks with Push-Buttons, 0.75 mm ,
2
2 Pin Spacing: 4 mm
216 2060 Series
● Board-to-board link simplifies in-line assembly of LED modules

● Easy push-in termination and disconnection
without push-button actuation

Technical data:
4 mm
Pin Spacing 0.157 in.
Ratings per IEC/EN 60664-1
Overvoltage category III III II
Pollution degree 3 2 2
Rated voltage 63 V 160 V 320 V
Rated surge voltage 2.5 kV 2.5 kV 2.5 kV
Nominal current 9 A 9 A 9 A
Approvals per UL/CSA
Rated voltage 250 V
Nominal current UL 9 A

Material data:
Material group I
Insulating material Polyamide 6.6 (PA 6.6)
Flammability rating per UL 94 0V
Lower/Upper limit temperature -60 °C / +105 °C
Contact material Copper alloy
Contact plating Silver-plated

Additional approvals and corresponding ratings can be found at www.wago.com. For additional technical information, see Section 13.
