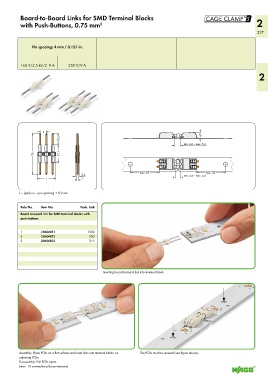

Board-to-Board Links for SMD Terminal Blocks
with Push-Buttons, 0.75 mm 2 2
217

Pin spacing: 4 mm / 0.157 in.

160 V/2.5 kV/2 9 A 250 V/9 A
2

< 4 > < < 4,5
____________> 7,25 > <_____________________
>
<
min. 4,4 ‒ max. 5,4
<__
26 11,5
<____________ <__

<_____
< 2,6 __> <_____ max. 22 ______> min. 4,4 ‒ max. 5,4 max. 22 ______>
L <___ 1 __> < > <_____________________
___>

L = (pole no. x pin spacing) + 0.9 mm

Pole No. Item No. Pack. Unit
Board-to-board link for SMD terminal blocks with
push-buttons

1 2060-901 1500
2 2060-902 500
3 2060-903 375

Inserting board-to-board link into terminal block.

Assembly: Place PCBs on a flat surface and insert links into terminal blocks on The PCBs must be secured (see figure above).
adjoining PCBs.
Disassembly: Pull PCBs apart.
(max. 10 connections/disconnections)
