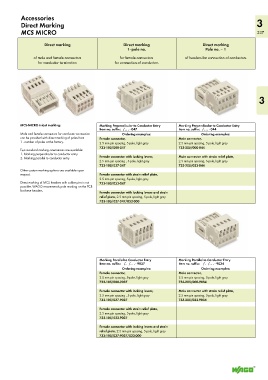

Page 239 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Accessories
Direct Marking 3
MCS MICRO 237

Direct marking Direct marking Direct marking
1–pole no. Pole no. – 1
of male and female connectors for female connectors of headers for connection of conductors
for conductor termination for connection of conductors

3

MCS-MICRO inkjet marking: Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry
Item no. suffix: /. . . - 047 Item no. suffix: /. . . - 044
Male and female connectors for conductor connection Ordering examples: Ordering examples:
can be provided with direct marking of poles from Female connector, Male connector,
1 - number of poles at the factory. 2.5 mm pin spacing, 5-pole, light gray 2.5 mm pin spacing, 5-pole, light gray
733-105/000-047 733-205/000-044
Two standard marking orientations are available:
1. Marking perpendicular to conductor entry
2. Marking parallel to conductor entry Female connector with locking levers, Male connector with strain relief plate,
2.5 mm pin spacing , 5-pole, light gray 2.5 mm pin spacing, 5-pole, light gray
733-105/037-047 733-205/033-044
Other custom marking options are available upon
request. Female connector with strain relief plate,
2.5 mm pin spacing, 5-pole, light gray
Direct marking of MCS headers with solder pins is not 733-105/033-047
possible. WAGO recommends pole marking on the PCB
for these headers. Female connector with locking levers and strain
relief plate, 2.5 mm pin spacing, 5-pole, light gray
733-105/037-047/033-000

Marking Parallel to Conductor Entry Marking Parallel to Conductor Entry
Item no. suffix: /. /. . . - 9037 Item no. suffix: /. /. . . - 9034
Ordering examples: Ordering examples:
Female connector, Male connector,
2.5 mm pin spacing, 5-pole, light gray 2.5 mm pin spacing, 5-pole, light gray
733-105/000-9037 733-205/000-9034

Female connector with locking levers, Male connector with strain relief plate,
2.5 mm pin spacing , 5-pole, light gray 2.5 mm pin spacing, 5-pole, light gray
733-105/037-9037 733-205/033-9034

Female connector with strain relief plate,
2.5 mm pin spacing, 5-pole, light gray
733-105/033-9037

Female connector with locking levers and strain
relief plate, 2.5 mm pin spacing, 5-pole, light gray
733-105/037-9037/033-000
