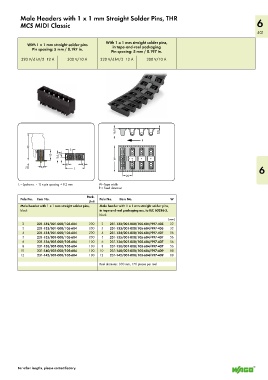

Page 403 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Headers with 1 x 1 mm Straight Solder Pins, THR
MCS MIDI Classic 6
401

With 1 x 1 mm straight solder pins,
With 1 x 1 mm straight solder pins in tape-and-reel packaging
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

320 V/4 kV/2 12 A 300 V/10 A 320 V/4 kV/2 12 A 300 V/10 A

16,8 0,6
R
30
5 _______>
12 8,4 3,8
W
4,1 4,1 ______
2,4 3,8 <_____ _____> 6
L
<_
20
L = (pole no. – 1) x pin spacing + 8.2 mm W=Tape width
R = Feed direction

Pack.
Pole No. Item No. Pole No. Item No. W
Unit
Male header with 1 x 1 mm straight solder pins, Male header with 1 x 1 mm straight solder pins,
black in tape-and-reel packaging acc. to IEC 60286-3,
black
(mm)
2 231-132/001-000/105-604 200 2 231-132/001-000/105-604/997-405 32
3 231-133/001-000/105-604 200 3 231-133/001-000/105-604/997-405 32
4 231-134/001-000/105-604 200 4 231-134/001-000/105-604/997-407 56
5 231-135/001-000/105-604 200 5 231-135/001-000/105-604/997-407 56
6 231-136/001-000/105-604 100 6 231-136/001-000/105-604/997-407 56
8 231-138/001-000/105-604 100 8 231-138/001-000/105-604/997-407 56
10 231-140/001-000/105-604 100 10 231-140/001-000/105-604/997-409 88
12 231-142/001-000/105-604 100 12 231-142/001-000/105-604/997-409 88
Reel diameter: 330 mm, 170 pieces per reel

For other lengths, please contact factory.
