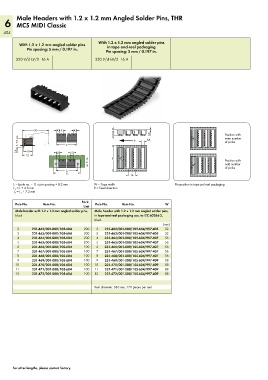

Male Headers with 1.2 x 1.2 mm Angled Solder Pins, THR
6 MCS MIDI Classic
404

With 1.2 x 1.2 mm angled solder pins
With 1.2 x 1.2 mm angled solder pins in tape-and-reel packaging
Pin spacing: 5 mm / 0.197 in. Pin spacing: 5 mm / 0.197 in.

320 V/4 kV/2 16 A 320 V/4 kV/2 16 A

30 4,1 5 4,1
12,2 0,5 Position with
of poles
7,5 R 6,4 even number
L
<______ _____>
2,4 10 6,5 5
12 <_______ W_______>
5 Position with
odd number
_____> _ of poles
<______ L 1
<________ L 2 _______>
16
L = (pole no. – 1) x pin spacing + 8.2 mm W = Tape width Pin position in tape-and-reel packaging
L = L + 4.8 mm R = Feed direction
1
L = L + 7.2 mm
1
2
Pack.
Pole No. Item No. Pole No. Item No. W
Unit
Male header with 1.2 x 1.2 mm angled solder pins, Male header with 1.2 x 1.2 mm angled solder pins,
black in tape-and-reel packaging acc. to IEC 60286-3,
black
(mm)
2 231-462/001-000/105-604 200 2 231-462/001-000/105-604/997-405 32
3 231-463/001-000/105-604 200 3 231-463/001-000/105-604/997-405 32
4 231-464/001-000/105-604 200 4 231-464/001-000/105-604/997-407 56
5 231-465/001-000/105-604 200 5 231-465/001-000/105-604/997-407 56
6 231-466/001-000/105-604 100 6 231-466/001-000/105-604/997-407 56
7 231-467/001-000/105-604 100 7 231-467/001-000/105-604/997-407 56
8 231-468/001-000/105-604 100 8 231-468/001-000/105-604/997-407 56
9 231-469/001-000/105-604 100 9 231-469/001-000/105-604/997-409 88
10 231-470/001-000/105-604 100 10 231-470/001-000/105-604/997-409 88
11 231-471/001-000/105-604 100 11 231-471/001-000/105-604/997-409 88
12 231-472/001-000/105-604 100 12 231-472/001-000/105-604/997-409 88

Reel diameter: 330 mm, 170 pieces per reel

For other lengths, please contact factory.
