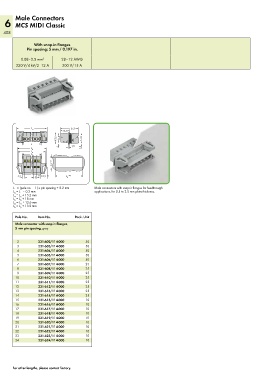

Page 410 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Male Connectors
6 MCS MIDI Classic
408

With snap-in flanges
Pin spacing: 5 mm / 0.197 in.

0.08–2.5 mm 2 28–12 AWG
320 V/4 kV/2 12 A 300 V/15 A

<__________ L 5 __________> <______ 27,3>
) 13,3 )
)
<
<_
17,5 14,4 14,9
<____ L <____ _> > <_ 2 1,5 ) <__ 1,2
<__________ L 4 __________> ) <___
<__________ L A __________>

<_____ L 3 <____ _>
15 +0,1
4,1 ( 10,5 ) <_ <_______ L ±0,1 _______>
<__ < < 5 < B
L = (pole no. – 1) x pin spacing + 8.2 mm Male connectors with snap-in flanges for feedthrough
L = L – 0.2 mm applications, for 0.5 to 2.5 mm plate thickness.
3
L = L + 15.2 mm
3
4
L = L + 18 mm
3
5
L = L + 12.6 mm
A
3
L = L + 13.2 mm
3
B
Pole No. Item No. Pack. Unit
Male connector with snap-in flanges,
5 mm pin spacing, gray
2 231-602/114-000 50
3 231-603/114-000 50
4 231-604/114-000 50
5 231-605/114-000 50
6 231-606/114-000 50
7 231-607/114-000 25
8 231-608/114-000 25
9 231-609/114-000 25
10 231-610/114-000 25
11 231-611/114-000 25
12 231-612/114-000 25
13 231-613/114-000 25
14 231-614/114-000 25
15 231-615/114-000 10
16 231-616/114-000 10
17 231-617/114-000 10
18 231-618/114-000 10
19 231-619/114-000 10
20 231-620/114-000 10
21 231-621/114-000 10
22 231-622/114-000 10
23 231-623/114-000 10
24 231-624/114-000 10

For other lengths, please contact factory.
