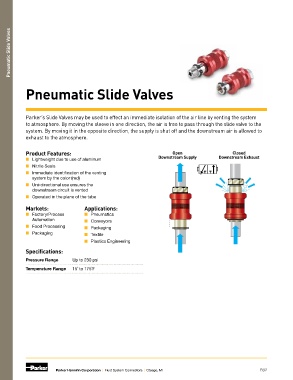

Page 116 - Brass, Composite and Thermoplastic Fittings and Valves

Pneumatic Slide Valves

Pneumatic Slide Valves

Parker’s Slide Valves may be used to effect an immediate isolation of the air line by venting the system
to atmosphere. By moving the sleeve in one direction, the air is free to pass through the slide valve to the
system. By moving it in the opposite direction, the supply is shut off and the downstream air is allowed to
exhaust to the atmosphere.

Product Features: Open Closed
■ Lightweight due to use of aluminum Downstream Supply Downstream Exhaust
■ Nitrile Seals
■ Immediate identification of the venting
system by the color (red)
■ Uni-directional use ensures the
downstream circuit is vented
■ Operated in the plane of the tube
Markets: Applications:
■ Factory/Process ■ Pneumatics
Automation ■ Conveyors
■ Food Processing ■ Packaging
■ Packaging ■ Textile
■ Plastics Engineering
Specifications:

Pressure Range Up to 230 psi
Temperature Range 15˚ to 175˚F

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B32
