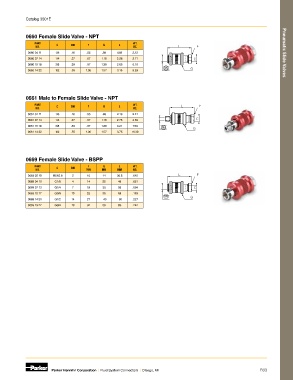

Page 117 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

0660 Female Slide Valve - NPT
PART WT.
NO. C DN F G L OZ.
0660 04 11 1/8 .16 .55 .98 1.89 2.12 Pneumatic Slide Valves
0660 07 14 1/4 .27 .67 1.18 2.28 3.71
0660 10 18 3/8 .39 .87 1.38 2.68 6.18
0660 14 22 1/2 .55 1.06 1.57 3.15 9.53

0661 Male to Female Slide Valve - NPT
PART C DN F G L WT.
NO. OZ.
0661 04 11 1/8 .16 .55 .98 2.19 2.47
0661 07 14 1/4 .27 .67 1.18 2.75 4.59
0661 10 18 3/8 .39 .87 1.38 3.21 7.59
0661 14 22 1/2 .55 1.06 1.57 3.75 11.30

0669 Female Slide Valve - BSPP
PART C DN F G L WT.
NO. MM MM MM KG.
0669 02 19 M5X0.8 2 10 14 30.5 .045
0669 04 10 G1/8 4 14 25 48 .051
0669 07 13 G1/4 7 19 30 58 .084
0669 10 17 G3/8 10 22 35 68 .153
0669 14 21 G1/2 14 27 40 80 .227
0669 19 27 G3/4 19 32 50 83 .242

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B33
