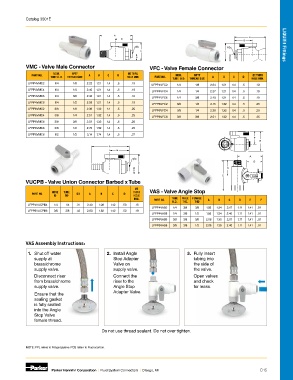

Page 141 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

A A
B
B
E E LIQUIfit Fittings
C C
D D
VMC - Valve Male Connector VFC - Valve Female Connector

PART NO. NOM. NPTF A B C D ØE THRU NOM. NPTF ØE THRU
TUBE O.D. THREAD SIZE HOLE MIN. PART NO. TUBE O.D. THREAD SIZE A B C D HOLE MIN.
LFPP4VMC2 1/4 1/8 2.22 1.21 1.4 .5 .19 LFPP4VFC2 1/4 1/8 2.04 1.21 1.4 .5 .19
LFPP4VMC4 1/4 1/4 2.40 1.21 1.4 .5 .19
LFPP4VFC4 1/4 1/4 2.27 1.21 1.4 .5 .19
LFPP4VMC6 1/4 3/8 2.40 1.21 1.4 .5 .19
LFPP4VFC6 1/4 3/8 2.40 1.21 1.4 .5 .19
LFPP4VMC8 1/4 1/2 2.59 1.21 1.4 .5 .19 LFPP6VFC2 3/8 1/8 2.15 1.32 1.4 .5 .25
LFPP6VMC2 3/8 1/8 2.33 1.32 1.4 .5 .25
LFPP6VFC4 3/8 1/4 2.38 1.32 1.4 .5 .25
LFPP6VMC4 3/8 1/4 2.51 1.32 1.4 .5 .25
LFPP6VFC6 3/8 3/8 2.51 1.32 1.4 .5 .25
LFPP6VMC6 3/8 3/8 2.51 1.32 1.4 .5 .25
LFPP6VMC8 3/8 1/2 2.70 1.32 1.4 .5 .25
LFPP8VMC8 1/2 1/2 3.14 1.74 1.4 .5 .37
F
E
A
B
A
E
B
C
D
D
C
VUCPB - Valve Union Connector Barbed x Tube
ØE
PART NO. HOSE TUBE OD A B C D THRU VAS - Valve Angle Stop
ID OD HOLE
MIN. PART NO. TUBE MALE FEMALE A B C D E F
O.D.
THD.
THD
LFPP4VUCPB4 1/4 1/4 .31 2.40 1.08 1.42 .50 .15
LFPP4VAS6 1/4 3/8 3/8 1.95 1.24 2.17 1.11 1.41 .91
LFPP6VUCPB6 3/8 3/8 .43 2.63 1.32 1.42 .50 .19
LFPP4VAS8 1/4 3/8 1/2 1.95 1.24 2.40 1.11 1.41 .91
LFPP6VAS6 3/8 3/8 3/8 2.06 1.35 2.17 1.11 1.41 .91
LFPP6VAS8 3/8 3/8 1/2 2.06 1.35 2.40 1.11 1.41 .91
VAS Assembly Instructions:

1. Shut off water 2. Install Angle 3. Fully insert
supply at Stop Adapter tubing into
brass/chrome Valve on the side of
supply valve. supply valve. the valve.
Disconnect riser Connect the Open valves
from brass/chrome riser to the and check
supply valve. Angle Stop for leaks.
Ensure that the Adapter Valve.
sealing gasket
is fully seated
into the Angle
Stop Valve
female thread.

Do not use thread sealant. Do not over tighten.

NOTE: PPL refers to Polypropylene. FCB refers to Fluorocarbon.

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI C15
