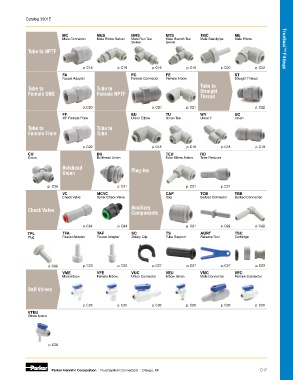

Page 143 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

MC MES MRS MTS TMC ME
Male Connector Male Elbow Swivel Male Run Tee Male Branch Tee Male Standpipe Male Elbow
Swivel Swivel
Tube to NPTF TrueSeal™ Fittings

p. C18 p. C19 p. C19 p. C19 p. C20 p. C22
FA FC FE ST
Faucet Adapter Female Connector Female Elbow Straight Thread
Tube to
Tube to Tube to
Female UNS Female NPTF Straight
Thread
p. C20 p. C20 p. C21 p. C22
FF EU TU WY UC
45° Female Flare Union Elbow Union Tee Union Y Union
Tube to Tube to
Female Flare Tube

p. C20 p. C18 p. C18 p. C18 p. C19
CU BU TEU RD
Cross Bulkhead Union Tube Elbow Union Tube Reducer
Bulkhead Plug-ins
Union

p. C20 p. C21 p. C21 p. C21
VC MCVC CAP TCB TEB
Check Valve Kynar Check Valve Cap Barbed Connector Barbed Connector

Check Valve Auxiliary
Components

p. C24 p. C24 p. C21 p. C22 p. C22
TPL TFA TAF SC TS AQRT TSC
Plug Faucet Adapter Faucet Adapter Safety Clip Tube Support Release Tool Cartridge

p. C22 p. C20 p. C20 p. C27 p. C27 p. C27 p. C23
VME VFE VUC VEU VMC VFC
Male Elbow Female Elbow Union Connector Elbow Union Male Connector Female Connector
Ball Valves

p. C25 p. C25 p. C26 p. C26 p. C26 p. C26
VTEU
Elbow Union

p. C26

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI C17
