Page 142 - Brass, Composite and Thermoplastic Fittings and Valves
P. 142

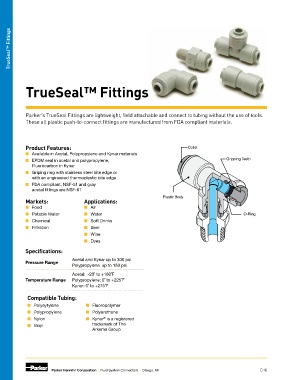

TrueSeal™ Fittings
TrueSeal™ Fittings
Parker’s TrueSeal Fittings are lightweight, field attachable and connect to tubing without the use of tools.
These all plastic push-to-connect fittings are manufactured from FDA compliant materials.
Product Features: Collet
■ Available in Acetal, Polypropylene and Kynar materials
■ EPDM seal in acetal and polypropylene, Gripping Teeth
Fluorocarbon in Kynar
■ Griping ring with stainless steel bite edge or
with an engineered thermoplastic bite edge
■ FDA compliant, NSF-51 and gray
acetal fittings are NSF-61
Plastic Body
Markets: Applications:
■ Food ■ Air
■ Potable Water ■ Water O-Ring
■ Chemical ■ Soft Drinks
■ Filtration ■ Beer
■ Wine
■ Dyes
Specifications:
Acetal and Kynar up to 300 psi
Pressure Range
Polypropylene up to 150 psi
Acetal: -20˚ to +180˚F
Temperature Range Polypropylene: 0˚ to +225˚F
Kynar: 0˚ to +275˚F
Compatible Tubing:
■ Polyeytylene ■ Fluoropolymer
■ Polypropylene ■ Polyurethane
®
■ Nylon ■ Kynar is a registered
■ Vinyl trademark of The
Arkema Group
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI C16
