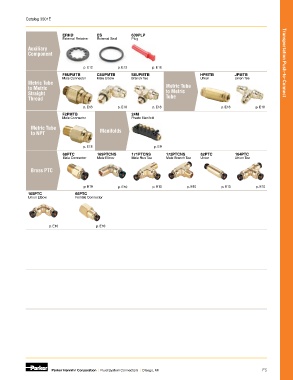

Page 183 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

ERHD ES 639PLP
External Retainer External Seal Plug
Auxiliary
Component

p. E12 p. E12 p. E16 Transportation Push-to-Connect
F8UPMTB C8UPMTB S8UPMTB HPMTB JPMTB
Male Connector Male Elbow Branch Tee Union Union Tee
Metric Tube
to Metric Metric Tube
Straight to Metric
Thread Tube
p. E18 p. E18 p. E18 p. E18 p. E18
F2PMTB 24M
Male Connector Presto Manifold
Metric Tube Manifolds
to NPT

p. E18 p. E9
68PTC 169PTCNS 171PTCNS 172PTCNS 62PTC 164PTC
Male Connector Male Elbow Male Run Tee Male Branch Tee Union Union Tee

Brass PTC

p. E10 p. E10 p. E10 p. E10 p. E10 p. E10
165PTC 66PTC
Union Elbow Female Connector

p. E10 p. E10

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI E5
