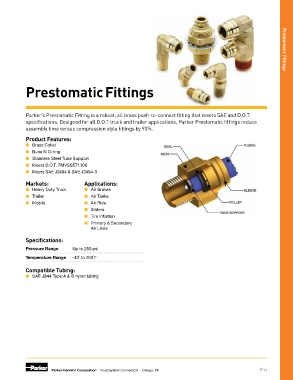

PrestomaticFittings Prestomatic Fittings
Parker’s Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T.
specifications. Designed for all D.O.T truck and trailer applications, Parker Prestomatic fittings reduce
assembly time versus compression style fittings by 90%.
Product Features:
■ Brass Collet
■ Buna N O-ring
■ Stainless Steel Tube Support
■ Meets D.O.T. FMVSS571.106
■ Meets SAE J2494 & SAE J2494-3
Markets: Applications:
■ Heavy Duty Truck ■ Air Brakes
■ Trailer ■ Air Tanks
■ Mobile ■ Air Ride
■ Sliders
■ Tire Inflation
■ Primary & Secondary
Air Lines
Specifications:
Pressure Range Up to 250 psi
Temperature Range -40˚ to 200˚F
Compatible Tubing:
■ SAE J844 Type A & B nylon tubing
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI E11
