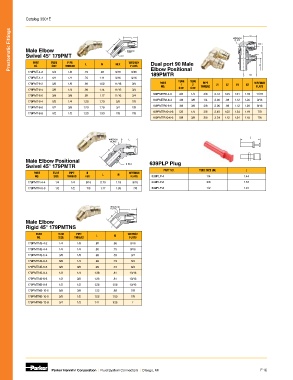

Page 194 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Prestomatic Fittings Male Elbow N HEX WRENCH WRENCH N1 TUBE 2 TUBE 1 L1

L
FLATS

FLATS
Swivel 45° 179PMT
Dual port 90 Male
TUBE
PIPE
PART
WRENCH
L
HEX
N
NO.
FLATS
THREAD
SIZE
Elbow Positional
179PMT-4-2
9/16
9/16
.92
.79
1/8
1/4
189PMTR N2 L2
179PMT-4-4 1/4 1/4 .79 1.14 9/16 9/16
179PMT-6-2 3/8 1/8 .99 1.02 11/16 3/4 PART TUBE TUBE PIPE L1 L2 N1 N2 WRENCH
1
2
NO. THREAD FLATS
179PMT-6-4 3/8 1/4 .99 1.14 11/16 3/4 SIZE SIZE
189PMTR6-4-6 3/8 1/4 3/8 2.12 1.05 1.21 1.19 11/16
179PMT-6-6 3/8 3/8 .99 1.17 11/16 3/4
189PMTR6-6-4 3/8 3/8 1/4 2.06 .98 1.12 1.20 9/16
179PMT-8-4 1/2 1/4 1.20 1.70 5/8 7/8
179PMT-8-6 1/2 3/8 1.20 1.78 3/4 7/8 189PMTR6-6-6 3/8 3/8 3/8 2.06 .98 1.12 1.20 9/16
189PMTR10-4-6 5/8 1/4 3/8 2.18 1.05 1.54 1.19 7/8
179PMT-8-8 1/2 1/2 1.20 1.93 7/8 7/8
189PMTR10-6-6 5/8 3/8 3/8 2.31 1.12 1.54 1.18 7/8
L
WRENCH L
FLATS
N
Male Elbow Positional 639PLP Plug
Swivel 45° 179PMTR B HEX
PART NO. TUBE SIZE (IN) L
PART TUBE PIPE B L N WRENCH
NO. SIZE THREAD HEX FLATS 639PLP-4 1/4 1.44
179PMTR-4-4 1/4 1/4 9/16 0.79 1.18 9/16 639PLP-6 3/8 1.67
179PMTR-8-8 1/2 1/2 7/8 1.17 1.35 7/8 639PLP-8 1/2 1.91
WRENCH
FLATS
L
N
Male Elbow
Rigid 45° 179PMTNS
PART TUBE PIPE L N WRENCH
NO. SIZE THREAD FLATS
179PMTNS-4-2 1/4 1/8 .80 .56 9/16
179PMTNS-4-4 1/4 1/4 .80 .75 9/16
179PMTNS-6-2 3/8 1/8 .99 .55 3/4
179PMTNS-6-4 3/8 1/4 .99 .73 3/4
179PMTNS-6-6 3/8 3/8 .99 .73 3/4
179PMTNS-8-4 1/2 1/4 1.28 .81 13/16
179PMTNS-8-6 1/2 3/8 1.28 .81 13/16
179PMTNS-8-8 1/2 1/2 1.28 1.06 13/16
179PMTNS-10-6 5/8 3/8 1.22 .88 7/8
179PMTNS-10-8 5/8 1/2 1.22 1.00 7/8
179PMTNS-12-8 3/4 1/2 1.41 1.25 1

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI E16
