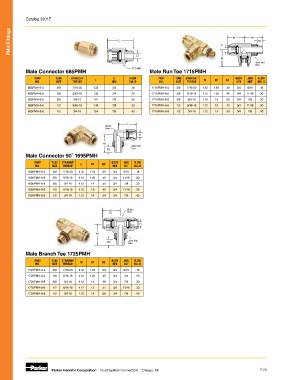

Page 198 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

PMH Fittings L D M N1 N2

D
M
Jam Nut
Hex
C Hex
Male Connector 685PMH Male Run Tee 1715PMH
PART TUBE STRAIGHT C FLOW PART TUBE STRAIGHT BODY JAM FLOW
NO. SIZE THREAD L HEX DIA. D NO. SIZE THREAD M N1 N2 HEX NUT DIA. D
685PMH-6-4 3/8 7/16-20 1.32 3/4 .18 1715PMH-6-4 3/8 7/16-20 1.12 1.18 .39 3/4 9/16 .18
685PMH-6-6 3/8 9/16-18 1.35 3/4 .30 1715PMH-6-6 3/8 9/16-18 1.12 1.25 .45 3/4 11/16 .30
685PMH-6-8 3/8 3/4-16 1.41 7/8 .30 1715PMH-6-8 3/8 3/4-16 1.12 1.4 .50 3/4 7/8 .30
685PMH-8-6 1/2 9/16-18 1.49 7/8 .30 1715PMH-8-6 1/2 9/16-18 1.12 1.3 .42 3/4 11/16 .30
685PMH-8-8 1/2 3/4-16 1.54 7/8 .40 1715PMH-8-8 1/2 3/4-16 1.12 1.4 .50 3/4 7/8 .40

L
Body
Hex
D
N1
Jam Nut
N2 Hex
Male Connector 90˚ 1695PMH
PART TUBE STRAIGHT L N1 N2 BODY JAM FLOW
NO. SIZE THREAD HEX NUT DIA. D
1695PMH-6-4 3/8 7/16-20 1.12 1.18 .39 3/4 9/16 .18
1695PMH-6-6 3/8 9/16-18 1.12 1.25 .45 3/4 11/16 .30
1695PMH-6-8 3/8 3/4-16 1.12 1.4 .50 3/4 7/8 .30
1695PMH-8-6 1/2 9/16-18 1.12 1.3 .42 3/4 11/16 .30
1695PMH-8-8 1/2 3/4-16 1.12 1.4 .50 3/4 7/8 .40

Body
M
2x Hex
D
N1
Jam Nut
N2 Hex
Male Branch Tee 1725PMH
PART TUBE STRAIGHT BODY JAM FLOW
NO. SIZE THREAD M N1 N2 HEX NUT DIA. D
1725PMH-6-4 3/8 7/16-20 1.12 1.18 .39 3/4 9/16 .18
1725PMH-6-6 3/8 9/16-18 1.12 1.25 .45 3/4 3/4 .30
1725PMH-6-8 3/8 3/4-16 1.12 1.4 .50 3/4 7/8 .30
1725PMH-8-6 1/2 9/16-18 1.12 1.3 .42 3/4 11/16 .30
1725PMH-8-8 1/2 3/4-16 1.12 1.4 .50 3/4 7/8 .40

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI E20
