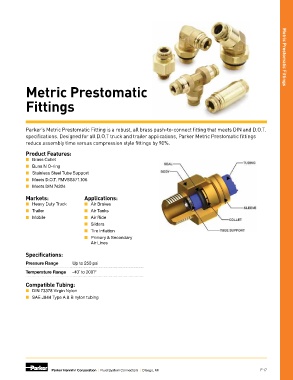

Page 195 - Brass, Composite and Thermoplastic Fittings and Valves

Metric Prestomatic Metric Prestomatic Fittings

Fittings

Parker’s Metric Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets DIN and D.O.T.
specifications. Designed for all D.O.T truck and trailer applications, Parker Metric Prestomatic fittings
reduce assembly time versus compression style fittings by 90%.

Product Features:
■ Brass Collet
■ Buna N O-ring
■ Stainless Steel Tube Support
■ Meets D.O.T. FMVSS571.106
■ Meets DIN 74324

Markets: Applications:
■ Heavy Duty Truck ■ Air Brakes
■ Trailer ■ Air Tanks
■ Mobile ■ Air Ride
■ Sliders
■ Tire Inflation
■ Primary & Secondary
Air Lines
Specifications:

Pressure Range Up to 250 psi
Temperature Range -40˚ to 200˚F

Compatible Tubing:
■ DIN 73378 Virgin Nylon
■ SAE J844 Type A & B nylon tubing

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI E17
