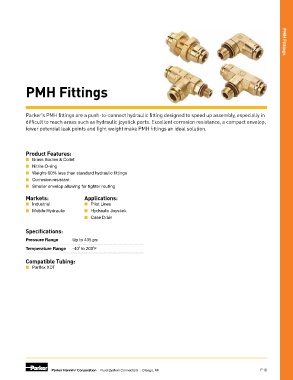

PMH Fittings PMH Fittings

Parker’s PMH fittings are a push-to-connect hydraulic fitting designed to speed up assembly, especially in
difficult to reach areas such as hydraulic joystick ports. Excellent corrosion resistance, a compact envelop,
fewer potential leak points and light weight make PMH fittings an ideal solution.

Product Features:
■ Brass Bodies & Collet
■ Nitrile O-ring
■ Weighs 60% less than standard hydraulic fittings
■ Corrosion resistant
■ Smaller envelop allowing for tighter routing

Markets: Applications:
■ Industrial ■ Pilot Lines
■ Mobile Hydraulic ■ Hydraulic Joystick
■ Case Drain

Specifications:

Pressure Range Up to 435 psi
Temperature Range -40˚ to 200˚F

Compatible Tubing:
■ Parflex XDT
