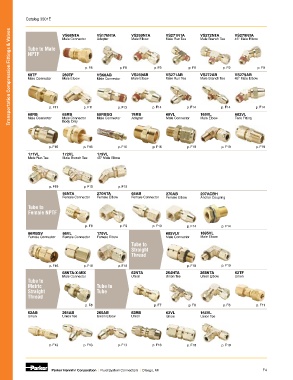

Page 202 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Transportation Compression Fittings & Valves
VS68NTA VS176NTA VS269NTA VS271NTA VS272NTA VS279NTA
Male Connector Adapter Male Elbow Male Run Tee Male Branch Tee 45° Male Elbow
Tube to Male
NPTF

p. F8 p. F8 p. F9 p. F9 p. F9 p. F9
68TF 269TF VS68AB VS269AB VS271AB VS272AB VS279AB
Male Connector Male Elbow Male Connector Male Elbow Male Run Tee Male Branch Tee 45° Male Elbow

p. F11 p. F11 p. F13 p. F14 p. F14 p. F14 p. F14
68RB 68RB 68RBSG 76RB 68VL 169VL 682VL
Male Connector Male Connector Male Connector Adapter Male Connector Male Elbow Tank Fitting
Body Only

p. F16 p. F16 p. F16 p. F16 p. F18 p. F19 p. F19
171VL 172VL 179VL
Male Run Tee Male Branch Tee 45° Male Elbow

p. F19 p. F19 p. F19
66NTA 270NTA 66AB 270AB 207ACBH
Female Connector Female Elbow Female Connector Female Elbow Anchor Coupling
Tube to
Female NPTF

p. F8 p. F9 p. F13 p. F14 p. F14
66RBSV 66VL 170VL 685VLV 1695VL
Female Connector Female Connector Female Elbow Male Connector Male Elbow
Tube to
Straight
Thread

p. F16 p. F18 p. F19 p. F18 p. F19
68NTA-X-MIX 62NTA 264NTA 265NTA 62TF
Male Connector Union Union Tee Union Elbow Union
Tube to
Metric Tube to
Straight Tube
Thread

p. F8 p. F7 p. F8 p. F8 p. F11
62AB 264AB 265AB 62RB 62VL 164VL
Union Union Tee Union Elbow Union Union Union Tee

p. F13 p. F13 p. F13 p. F16 p. F18 p. F19

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI F4
