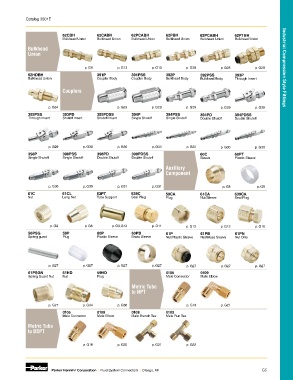

Page 223 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

62CBH 62CABH 62PCABH 62PBH 62PCABH 62PTBH
Bulkhead Union Bulkhead Union Bulkhead Union Bulkhead Union Bulkhead Union Bulkhead Union
Bulkhead
Union

p. G9 p. G13 p. G13 p. G28 p. G28 p. G28 Industrial Compression Style Fittings
62HDBH 391P 391PSS 392P 392PSS 393P
Bulkhead Union Coupler Body Coupler Body Bulkhead Body Bulkhead Body Through Insert

Couplers

p. G34 p. G29 p. G29 p. G29 p. G29 p. G29
393PSS 393PD 393PDSS 394P 394PSS 394PD 394PDSS
Through Insert Shutoff Insert Shutoff Insert Single Shutoff Single Shutoff Double Shutoff Double Shutoff

p. G29 p. G30 p. G30 p. G30 p. G30 p. G30 p. G30
398P 398PSS 398PD 398PDSS 60C 60PT
Single Shutoff Single Shutoff Double Shutoff Double Shutoff Sleeve Plastic Sleeve
Auxiliary
Component

p. G30 p. G30 p. G31 p. G31 p. G8 p. G8
61C 61CL 63PT 639C 59CA 61CA 639CA
Nut Long Nut Tube Support Seal Plug Plug Nut/Sleeve Seal Plug

p. G8 p. G8 p. G9,G13 p. G11 p. G13 p. G13 p. G16
56PSG 59P 60P 60PB 61P 61PB 61PN
Spring guard Plug Plastic Sleeve Brass Sleeve Nut/Plastic Sleeve Nut/Brass Sleeve Nut Only

p. G27 p. G27 p. G27 p. G27 p. G27 p. G27 p. G27
61PSGN 61HD 59HD 0105 0109
Spring Guard Nut Nut Plug Male Connector Male Elbow
Metric Tube
to NPT

p. G27 p. G34 p. G36 p. G18 p. G21
0105 0109 0108 0103
Male Connector Male Elbow Male Branch Tee Male Run Tee
Metric Tube
to BSPT

p. G18 p. G20 p. G21 p. G22

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G5
