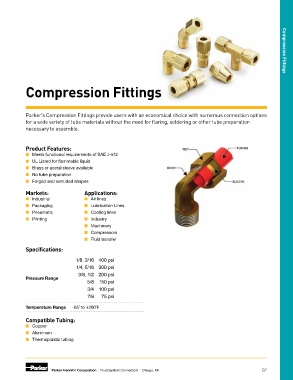

Page 225 - Brass, Composite and Thermoplastic Fittings and Valves

Compression Fittings Compression Fittings

Parker’s Compression Fittings provide users with an economical choice with numerous connection options
for a wide variety of tube materials without the need for flaring, soldering or other tube preparation
necessary to assemble.

Product Features:
■ Meets functional requirements of SAE J-512
■ UL Listed for flammable liquid
■ Brass or acetal sleeve available
■ No tube preparation
■ Forged and extruded shapes
Markets: Applications:
■ Industrial ■ Air lines
■ Packaging ■ Lubrication Lines
■ Pneumatic ■ Cooling lines
■ Printing ■ Industry
■ Machinery
■ Compressors
■ Fluid transfer
Specifications:

1/8, 3/16 400 psi
1/4, 5/16 300 psi
3/8, 1/2 200 psi
Pressure Range
5/8 150 psi
3/4 100 psi
7/8 75 psi

Temperature Range -65˚ to +200˚F

Compatible Tubing:
■ Copper
■ Aluminum
■ Thermoplastic tubing

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G7
