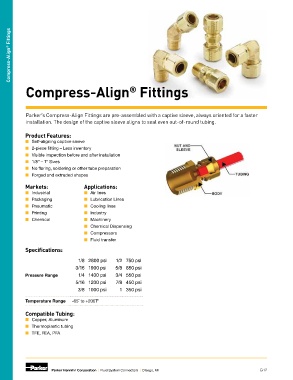

Compress-Align ® Fittings

Compress-Align Fittings
®

Parker’s Compress-Align Fittings are pre-assembled with a captive sleeve, always oriented for a faster
installation. The design of the captive sleeve aligns to seal even out-of-round tubing.

Product Features:
■ Self-aligning captive sleeve
■ 2-piece fitting – Less inventory
■ Visible inspection before and after installation
■ 1/8” – 1” Sizes
■ No flaring, soldering or other tube preparation
■ Forged and extruded shapes

Markets: Applications:
■ Industrial ■ Air lines
■ Packaging ■ Lubrication Lines
■ Pneumatic ■ Cooling lines
■ Printing ■ Industry
■ Chemical ■ Machinery
■ Chemical Dispensing
■ Compressors
■ Fluid transfer
Specifications:

1/8 2800 psi 1/2 750 psi
3/16 1900 psi 5/8 650 psi
Pressure Range 1/4 1400 psi 3/4 550 psi
5/16 1200 psi 7/8 450 psi
3/8 1000 psi 1 350 psi

Temperature Range -65˚ to +200˚F

Compatible Tubing:
■ Copper, Aluminum
■ Thermoplastic tubing
■ TFE, FEA, PFA

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G12
