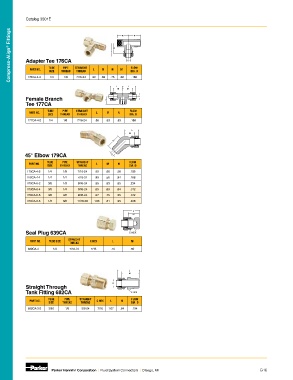

Page 234 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E N1 N

Compress-Align ® Fittings Adapter Tee 176CA STRAIGHT L M L N M N1 D FLOW

TUBE
PIPE
PART NO.
SIZE
THREAD
DIA. D
THREAD
.75
176CA-4-2
1/4
1/8
7/16-24
.92
.69
L .66 L .188
M M
Female Branch N D
Tee 177CA
TUBE PIPE STRAIGHT FLOW
PART NO. SIZE THREAD THREAD L M N DIA. D
177CA-4-2 1/4 1/8 7/16-24 .86 .63 .53 .188
L
M
N
45° Elbow 179CA D
TUBE PIPE STRAIGHT FLOW
PART NO. SIZE THREAD THREAD L M N DIA. D
179CA-4-2 1/4 1/8 7/16-24 .89 .66 .56 .188
179CA-4-4 1/4 1/4 7/16-24 .80 .56 .84 .188
179CA-6-2 3/8 1/8 9/16-24 .85 .63 .65 .234
179CA-6-4 3/8 1/4 9/16-24 .85 .63 .84 .312
179CA-6-6 3/8 3/8 9/16-24 .97 .75 .95 .312
179CA-8-6 1/2 3/8 11/16-20 1.03 .81 .95 .406

L
M

Seal Plug 639CA C HEX
STRAIGHT
PART NO. TUBE SIZE C HEX L M
THREAD
639CA-4 1/4 7/16-24 7/16 .74 .50

L
M

D
Straight Through
Tank Fitting 682CA C HEX
PART NO. TUBE PIPE STRAIGHT C HEX L M FLOW
SIZE THREAD THREAD DIA. D
682CA-3-2 3/16 1/8 3/8-24 7/16 1.07 .84 .194

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G16
