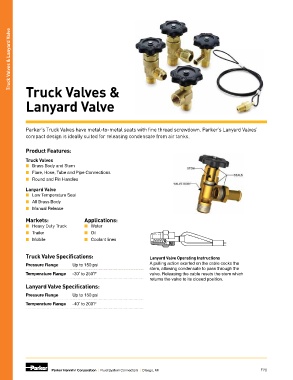

Page 218 - Brass, Composite and Thermoplastic Fittings and Valves

Truck Valves & Lanyard Valve

Truck Valves &

Lanyard Valve

Parker’s Truck Valves have metal-to-metal seats with fine thread screwdown. Parker’s Lanyard Valves’
compact design is ideally suited for releasing condensate from air tanks.

Product Features:

Truck Valves
■ Brass Body and Stem
■ Flare, Hose, Tube and Pipe Connections
■ Round and Pin Handles
Lanyard Valve
■ Low Temperature Seal
■ All Brass Body
■ Manual Release
Markets: Applications:
■ Heavy Duty Truck ■ Water
■ Trailer ■ Oil
■ Mobile ■ Coolant lines

Truck Valve Specifications: Lanyard Valve Operating Instructions
Pressure Range Up to 150 psi A pulling action exerted on the cable cocks the
stem, allowing condensate to pass through the
Temperature Range -30˚ to 250˚F valve. Releasing the cable resets the stem which
returns the valve to its closed position.
Lanyard Valve Specifications:
Pressure Range Up to 150 psi
Temperature Range -40˚ to 200˚F

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI F20
