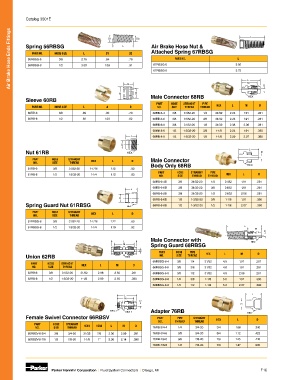

Page 214 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E L

Air Brake Hose Ends Fittings Spring 56RBSG 2.75 1.03 D1 L .78 D2 Air Brake Hose Nut & 3.50

Attached Spring 67RBSG
D1
HOSE SIZE
L
PART NO.
D2
L
PART NO.
3/8
.84
56RBSG-6
67RBSG-6
.91
3.00
1/2
56RBSG-8
3.75
67RBSG-8
A L D Male Connector 68RB L M HEX D
Sleeve 60RB
PART HOSE STRAIGHT PIPE
PART NO. HOSE SIZE L A D NO. SIZE THREAD THREAD HEX L M D
60RB-6 3/8 .69 .90 .78 68RB-6-4 3/8 31/32-20 1/4 31/32 2.24 1.91 .281
60RB-8 1/2 .69 1.03 .92 68RB-6-6 3/8 31/32-20 3/8 31/32 2.24 1.91 .281
68RB-6-8 3/8 31/32-20 1/2 31/32 2.38 2.06 .281
68RB-8-6 1/2 1-3/32-20 3/8 1-1/8 2.24 1.91 .390
L 68RB-8-8 1/2 1-3/32-20 1/2 1-1/8 2.29 2.07 .390
D
Nut 61RB HEX L D
PART HOSE STRAIGHT Male Connector
NO. SIZE THREAD HEX L D
Body Only 68RB HEX
61RB-6 3/8 31/32-20 1-1/16 1.12 .80
PART HOSE STRAIGHT PIPE
61RB-8 1/2 1-3/32-20 1-1/4 1.12 .93 NO. SIZE THREAD THREAD HEX L D
68RB-6-4B 3/8 31/32-20 1/4 31/32 1.91 .281
68RB-6-6B 3/8 31/32-20 3/8 31/32 1.91 .281
L
68RB-6-8B 3/8 31/32-20 1/2 31/32 2.06 .281
D 68RB-8-6B 1/2 1-3/32-20 3/8 1-1/8 1.91 .390
Spring Guard Nut 61RBSG HEX 68RB-8-8B 1/2 1-3/32-20 1/2 1-1/8 2.07 .390
PART HOSE STRAIGHT
NO. SIZE THREAD HEX L D
61RBSG-6 3/8 31/32-20 1-1/16 1.22 .80
61RBSG-8 1/2 1-3/32-20 1-1/4 1.19 .92 L M
D
Male Connector with
L HEX
Spring Guard 68RBSG
M
D PART HOSE PIPE HEX L M D
Union 62RB HEX NO. SIZE THREAD
68RBSG-6-4 3/8 1/4 31/32 4.8 1.91 .281
PART HOSE STRAIGHT
NO. SIZE THREAD HEX L M D 68RBSG-6-6 3/8 3/8 31/32 4.8 1.91 .281
62RB-6 3/8 31/32-20 31/32 2.98 2.56 .281 68RBSG-6-8 3/8 1/2 31/32 4.9 2.06 .281
62RB-8 1/2 1-3/32-20 1-1/8 2.99 2.55 .390 68RBSG-8-6 1/2 3/8 1-1/8 5.0 1.91 .390
68RBSG-8-8 1/2 1/2 1-1/8 5.2 2.07 .390
L
L
M
D
D
HEX 2 HEX 1 Adapter 76RB
HEX
Female Swivel Connector 66RBSV PART PIPE STRAIGHT
NO. THREAD THREAD HEX L D
PART HOSE STRAIGHT HEX1 HEX2 L M D
NO. SIZE THREAD 76RB-3/4-4 1/4 3/4-20 3/4 1.06 .310
66RBSV-6-3/4 3/8 3/4-20 31/32 7/8 2.30 2.09 .281 76RB-3/4-6 3/8 3/4-20 3/4 1.12 .422
66RBSV-8-7/8 1/2 7/8-20 1-1/8 1" 2.36 2.14 .390 76RB-7/8-6 3/8 7/8-20 7/8 1.25 .440
76RB-7/8-8 1/2 7/8-20 7/8 1.47 .500

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI F16
