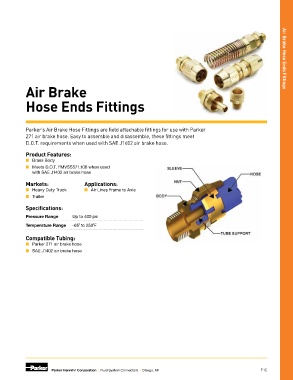

Page 213 - Brass, Composite and Thermoplastic Fittings and Valves

Air Brake Air Brake Hose Ends Fittings

Hose Ends Fittings

Parker’s Air Brake Hose Fittings are field attachable fittings for use with Parker
271 air brake hose. Easy to assemble and disassemble, these fittings meet
D.O.T. requirements when used with SAE J1402 air brake hose.

Product Features:
■ Brass Body
■ Meets D.O.T. FMVSS571.106 when used
with SAE J1402 air brake hose

Markets: Applications:
■ Heavy Duty Truck ■ Air Lines Frame to Axle
■ Trailer
Specifications:

Pressure Range Up to 400 psi
Temperature Range -65˚ to 250˚F

Compatible Tubing:
■ Parker 271 air brake hose
■ SAE J1402 air brake hose

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI F15
