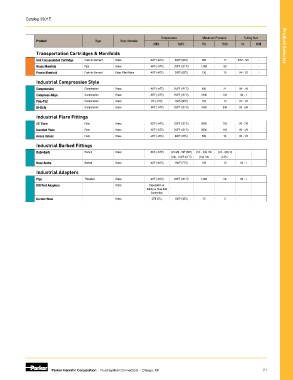

Page 23 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Temperature Maximum Pressure Tubing Size
Product Type Body Material
MIIN. MAX. PSI BAR IN. MM Product Selector
Transportation Cartridges & Manifolds
SAE Encapsulated Cartridge Push-to-Connect Brass -40˚F (-40˚C) 200˚F (93˚C) 250 17 5/32 - 3/4 -
Brass Manifold Pipe Brass -65˚F (-54˚C) 250˚F (121˚C) 1,000 69 - -
Presto Manifold Push-to-Connect Glass Filled Nylon -40˚F (-40˚C) 200˚F (93˚C) 150 10 1/4 - 1/2 -
Industrial Compression Style

Compression Compression Brass -65˚F (-54˚C) 250˚F (121˚C) 400 27 1/8 - 7/8
Compress-Align Compression Brass -65˚F (-54˚C) 250˚F (121˚C) 2800 193 1/8 - 1
Poly-Tite Compression Brass 0˚F (-18˚C) 150˚F (65˚C) 150 10 1/4 - 1/2
Hi-Duty Compression Brass -65˚F (-54˚C) 250˚F (121˚C) 4300 296 1/8 - 5/8
Industrial Flare Fittings
45˚ Flare Flare Brass -65˚F (-54˚C) 250˚F (121˚C) 2800 193 1/8 - 7/8
Inverted Flare Flare Brass -65˚F (-54˚C) 250˚F (121˚C) 2800 193 1/8 - 3/4
Acess Valves Flare Brass -20˚F (-29˚C) 200˚F (93˚C) 500 34 1/8 - 1/2
Industrial Barbed Fittings
Dubl-Barb Barbed Brass -65˚F (-54˚C) (1/4-3/8) - '90˚F (32˚C) (1/4 - 3/8) 150 (1/4 - 3/8) 10
(1/2) - 100˚F (37˚ C) (1/2) 100 (1/2) 7
Hose Barbs Barbed Brass -40˚F (-40˚C) 160˚F (71˚C) 150 10 1/4 - 1
Industrial Adapters
Pipe Threaded Brass -65˚F (-54˚C) 250˚F (121˚C) 1,000 69 1/8 - 1
ISO Port Adapters Brass Dependent on
Tubing or Hose End
Connection
Garden Hose Brass 35˚F (2˚C) 100˚F (38˚C) 75 5

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI 21
