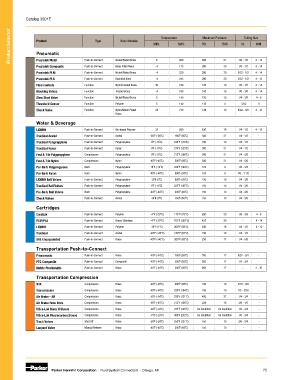

Page 22 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Product Selector Product Type Body Material MIIN. Temperature MAX. PSI BAR IN. Tubing Size MM
Maximum Pressure

Pneumatic
Prestolok Metal
Prestolok Composite Push-to-Connect Nickel Plated Brass -4 0 200 300 21 1/8 - 1/2 4 - 14
3 - 14
Glass Filled Nylon
20
1/8 - 1/2
175
Push-to-Connect
290
Prestolok PLM Push-to-Connect Nickel Plated Brass -4 250 290 20 5/32 - 1/2 4 - 14
Prestolok PLS Push-to-Connect Stainless Steel -4 245 290 20 5/32 - 1/2 4 - 12
Flow controls Function Nylon/Treated Brass 30 160 145 10 1/8 - 1/2 4 - 14
Blocking Valves Function Treated Brass -4 160 145 10 1/8 - 3/8 4 - 14
Slow Start Valve Function Nickel Plated Brass 5 140 150 10 1/4 - 3/8 4 - 6
Threshold Sensor Function Polymer 5 140 115 8 5/32 4
Check Valve Function Nylon/Nickel Plated 34 150 145 10 5/32 - 3/8 4 - 12
Brass
Water & Beverage
LIQUIfit Push-to-Connect Bio-based Polymer 35 299 230 16 1/4 - 1/2 4 - 12
TrueSeal Acetal Push-to-Connect Acetal -20˚F (-29˚C) 180˚F (85˚C) 300 21 1/4 - 1/2 -
TrueSeal Polypropylene Push-to-Connect Polypropylene 0˚F (-18˚C) 225˚F (110˚C) 150 10 1/4 - 1/2 -
TrueSeal Kynar Push-to-Connect Kynar 0˚F (-18˚C) 275˚F (135˚C) 300 21 1/4 - 1/2 -
Fast & Tite Polypropylene Compression Polypropylene 0˚F (-18˚C) 212˚F (100˚C) 300 21 1/4 - 5/8 -
Fast & Tite Nylon Compression Nylon -40˚F (-40˚C) 200˚F (93˚C) 300 21 1/4 - 5/8 -
Par-Barb Polypropylene Barb Polypropylene 10˚F (-12˚C) 220˚F (104˚C) 125 9 1/8 - 3/4 -
Par-Barb Nylon Barb Nylon -40˚F (-40˚C) 200˚F (93˚C) 125 9 1/8 - 1 1/2 -
LIQUIfit Ball Valves Push-to-Connect Polypropylene 35˚F (1˚C) 200˚F (93˚C) 150 10 1/4 - 3/8 -
TrueSeal Ball Valves Push-to-Connect Polypropylene 0˚F (-18˚C) 225˚F (107˚C) 150 10 1/4 - 3/8 -
Par-Barb Ball Valves Barb Polypropylene -40˚F (-40˚C) 200˚F (93˚C) 150 10 1/4 - 3/8 -
Check Valves Push-to-Connect Acetal 34˚F (1˚C) 150˚F (65˚C) 150 10 1/4 - 3/8 -
Cartridges
Carstick Push-to-Connect Polymer -4°F (-20°C) 175°F (79°C) 290 20 1/8 - 3/8 4 - 8
PLM/PLS Push-to-Connect Brass/ Stainless -4°F (-20°C) 175°F (150°C) 435 30 - 4 - 14
LIQUIfit Push-to-Connect Polymer 35°F (1°C) 200°F (93°C) 230 16 1/4 - 1/2 4 - 12
TrueSeal Push-to-Connect Acetal -20°F (-28°C) 180°F (82°C) 150 10 1/4 - 1/2 -
SAE Encapsulated Push-to-Connect Brass -40°F (-40°C) 200°F (93°C) 250 17 1/4 - 5/8 -
Transportation Push-to-Connect
Prestomatic Push-to-Connect Brass -40˚F (-40˚C) 200˚F (93˚C) 250 17 5/32 - 3/4 -
PTC Composite Push-to-Connect Composite -40˚F (-40˚C) 200˚F (93˚C) 250 17 1/4 - 3/4 -
Metric Prestomatic Push-to-Connect Brass -40˚F (-40˚C) 200˚F (93˚C) 250 17 - 4 - 16
Transportation Compression

NTA Compression Brass -40˚F (-40˚C) 200˚F (93˚C) 150 10 3/16 - 3/4 -
Transmission Compression Brass -40˚F (-40˚C) 220˚F (104˚C) 150 10 1/8 - 5/32 -
Air Brake - AB Compression Brass -65˚F (-54˚C) 250˚F (121˚C) 400 27 1/4 - 3/4 -
Air Brake Hose Ends Compression Brass -50˚F (-45˚C) 212˚F (100˚C) 225 15 3/8 - 1/2 -
Vibra-Lok Buna N Sleeve Compression Brass -30˚F (-34˚C) 275˚F (135˚C) On Condition On Condition 1/8 - 3/4 -
Vibra-Lok Fluorocarbon Sleeve Compression Brass -15˚F (-26˚C) 450˚F (232˚C) On Condition On Condition 1/8 - 3/4 -
Truck Valves Shut Off Brass -30˚F (-34˚C) 250˚F (121˚C) 150 10 3/8 - 3/4 -
Lanyard Valve Manual Release Brass -40˚F (-40˚C) 200˚F (93˚C) 150 10 - -

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI 20
