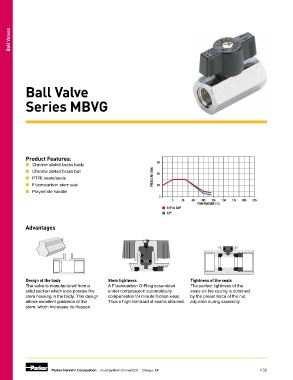

Page 366 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valve

Series MBVG

Product Features:
■ Chrome plated brass body 30
■ Chrome plated brass ball 20
■ PTFE seats/seals PRESSURE (BAR)
■ Fluorocarbon stem seal 10
■ Polyamide handle
0
0 25 50 100 125 150 175 200 225
TEMPERATURE (°C)
1/4" to 3/8"
1/2"

Advantages

Design of the body Stem tightness Tightness of the seals
The valve is manufactured from a A Fluorocarbon O-Ring assembled The perfect tightness of the
solid section which incorporates the under compression automatically seals on the casing is obtained
stem housing in the body. This design compensates for minute friction wear. by the preset force of the nut,
allows excellent guidance of the Thus a high standard of seal is attained. adjusted during assembly.
stem, which increases its lifespan.

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K56
