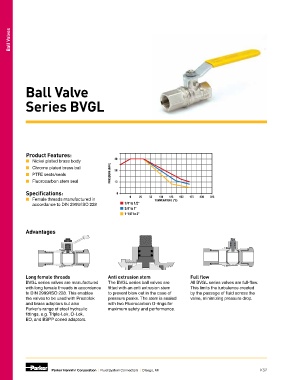

Page 362 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valve

Series BVGL

Product Features:
■ Nickel plated brass body 30
■ Chrome plated brass ball 20
■ PTFE seats/seals PRESSURE (BAR)
■ Fluorocarbon stem seal 10
Specifications: 0
125
100
■ Female threads manufactured in 0 25 50 TEMPERATURE (°C) 150 175 200 225
accordance to DIN 2999/ISO 228 1/4" to 1/2"
3/4" to 1"
1-1/4" to 2"

Advantages

Long female threads Anti extrusion stem Full flow
BVGL series valves are manufactured The BVGL series ball valves are All BVGL series valves are full-flow.
with long female threads in accordance fitted with an anti extrusion stem This limits the turbulence created
to DIN 2999/ISO 228. This enables to prevent blow out in the case of by the passage of fluid across the
the valves to be used with Prestolok pressure peaks. The stem is sealed valve, minimizing pressure drop.
and brass adaptors but also with two Fluorocarbon O-rings for
Parker’s range of steel hydraulic maximum safety and performance.
fittings, e.g. Triple-Lok, O-Lok,
EO, and BSPP coned adaptors.
