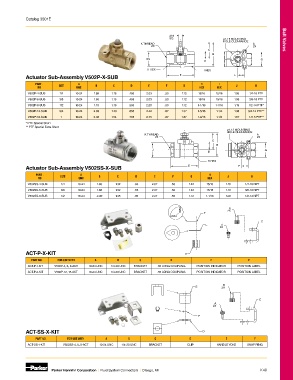

Page 359 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

.219
SQ. ø1.15 MOUNTING Ball Valves
HOLE CLEARANCE
K THREAD A
2X 2X
C
B
Ø J G
D
H HEX I HEX
Actuator Sub-Assembly V502P-X-SUB E F
PART . A H I
NO SIZE UNC B C D E F G HEX HEX J K
V502P-4-SUB 1/4 10-24 1.68 1.15 .495 2.03 .50 1.12 15/16 15/16 1.06 1/4-18 PTF
V502P-6-SUB 3/8 10-24 1.68 1.15 .495 2.03 .50 1.12 15/16 15/16 1.06 3/8-18 PTF
V502P-8-SUB 1/2 10-24 1.78 1.19 .565 2.20 .50 1.12 1-1/16 1-1/16 1.19 1/2-14 PTF*
V502P-12-SUB 3/4 10-24 2.09 1.40 .655 2.42 .87 1.37 1-5/16 1-1/4 1.38 3/4-14 PTF**
V502P-16-SUB 1 10-24 2.38 1.54 .785 2.75 .87 1.37 1-9/16 1-1/2 1.67 1-11.5 PTF**
* PTF Special Short
** PTF Special Extra Short
ø1.13 MOUNTING
HOLE CLEARANCE
K THREAD A
2X 2X
C
B
J G
D
H HEX
Actuator Sub-Assembly V502SS-X-SUB E F
PART . A H
NO SIZE UNC B C D E F G HEX J K
V502SS-4-SUB 1/4 10-24 1.88 1.32 .63 2.07 .50 1.12 15/16 1.10 1/4-18 NPT
V502SS-6-SUB 3/8 10-24 1.88 1.32 .63 2.07 .50 1.12 15/16 1.10 3/8-18 NPT
V502SS-8-SUB 1/2 10-24 2.00 1.35 .66 2.27 .50 1.12 1-1/16 1.28 1/2-14 NPT

B
2X
F
C
E A
2X

ACT-P-X-KIT D
PART NO. FOR USE WITH A B C D E F
ACT-P-1-KIT V502P-4, 6, 8-ACT 10-24 UNC 1/4-20 UNC BRACKET .60 LONG COUPLING POSITION INDICATOR POSITION LABEL
ACT-P-2-KIT V502P-12, 16-ACT 10-24 UNC 1/4-20 UNC BRACKET .55 LONG COUPLING POSITION INDICATOR POSITION LABEL

B
E 2X

C
A
2X
F

ACT-SS-X-KIT D
PART NO. FOR USE WITH A B C D E F
ACT-SS-1-KIT V502SS-4, 6, 8-ACT 10-24 UNC 1/4-20 UNC BRACKET CLIP HANDLE YOKE SNAP RING

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K49
