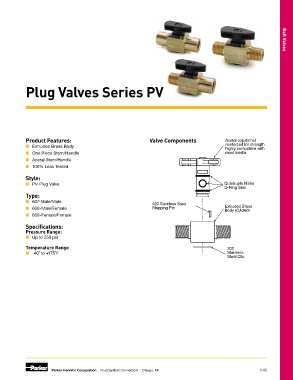

Plug Valves Series PV Ball Valves
Product Features: Valve Components Acetal copolymer
■ Extruded Brass Body reinforced for strength
highly compatible with
■ One Piece Stem/Handle most media
■ Acetal Stem/Handle
■ 100% Leak Tested
Style:
■ PV-Plug Valve Quadruple Nitrile
O-Ring Seal
Type:
■ 607-Male/Male
420 Stainless Steel
■ 608-Male/Female Stopping Pin Extruded Brass
Body (CA360)
■ 609-Female/Female
Specifications:
Pressure Range:
■ Up to 250 psi
Temperature Range 302
■ -40˚ to +175˚F Stainless
Steel Clip
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K45
